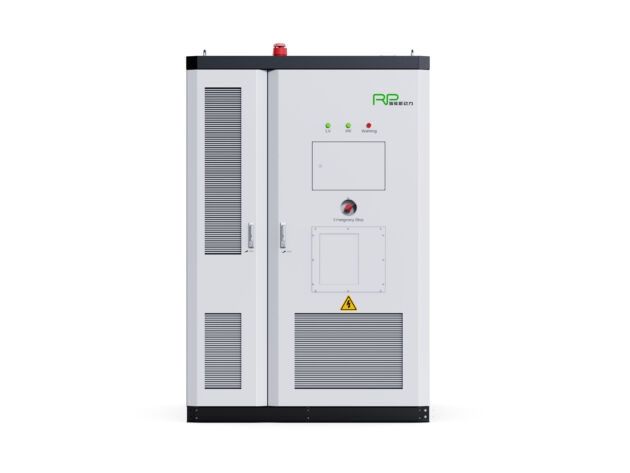

Description
1、Product Feature
- Flexible deployment: integrated design, seamless parallel connection of multiple machines, pre-installation and pre-debugging; IP54 protection level, meeting various outdoor scenarios;
- Intelligent operation and maintenance: Cloud-edge collaboration technology enables remote intelligent monitoring and local monitoring; improving the efficiency of power station life cycle management;
- Multiple control strategies: peak shaving and valley filling, dynamic capacity increase, demand control;
- Efficient thermal management: Using a high-efficiency liquid cooling control system, the temperature difference of the battery core is maintained within 2°C;
- Safe and reliable: multiple fire safety designs, accurate early warning of thermal runaway, timely fire protection, and intelligent battery health management;
- Multiple protections: high and low temperature protection, over and under voltage protection, short circuit protection, anti-reverse flow, anti-overload, anti-islanding, etc.;
- Complete certifications: Comply with EN62477-1, EN62619, EN60730, EN61000-6-2, EN61000-6-4, IEC60529, UN38.3, MSDS, shipping certificate, hazardous characteristics classification and other international certifications.
2、Paramenter
| System parameters | ||
| Full Configuration Capacity (kWh) | 232 | |
| Rated Power (kW) | 125 | |
| Cycle Life | 7000, 70%EOL | @25℃,90%DOD |
| Communication Protocol | RS-485/TCP IP | |
| Temperature Control Solution | Liquid Cooled | |
| Maximum AC Current (A) | 198 | |
| Power Factor | 0.99 | |
| Altitude | 3000 | >2000Reduce power |
| Ambient Temperature (℃) | -20~+55 | |
| Relative Humidity (%Rh) | 0~95 | No condensation |
| Protection Rating | IP54 | |
| Corrosion Protection Rating | C4 | |
| Dimensions (WDH) (mm) | 1200*1950*2300 | |
| Full Configuration Weight (T) | 2.5 | |
| Certification | EN62477-1，EN62619，EN60730，EN61000-6-2，EN61000-6-4，IEC60529，UN38.3 | |
| DC side parameters | ||
| Rated Voltage (V) | 832V | |
| Voltage Range (V) | 728~949 | |
| Rated Output Current (A) | 140 | |
| Rated Capacity (kWh) | 232 | |
| Battery System Configuration | 1P260S | |
| Battery Pack Configuration | 1P52S | |
| Maximum Charge/Discharge Rate | 0.5C | |
| Cell Rated Capacity | 280Ah | |
| AC Side Parameter | ||
| DC Voltage Range (V) | 615~950 | |
| Rated AC Power (kW) | 125 | |
| Maximum AC Current (A) | 198 | |
| Rated AC Voltage (V) | 400 | |
| Wiring Method | 3P3W+N | |
| Rated Voltage Frequency (Hz) | 50/60 | |
