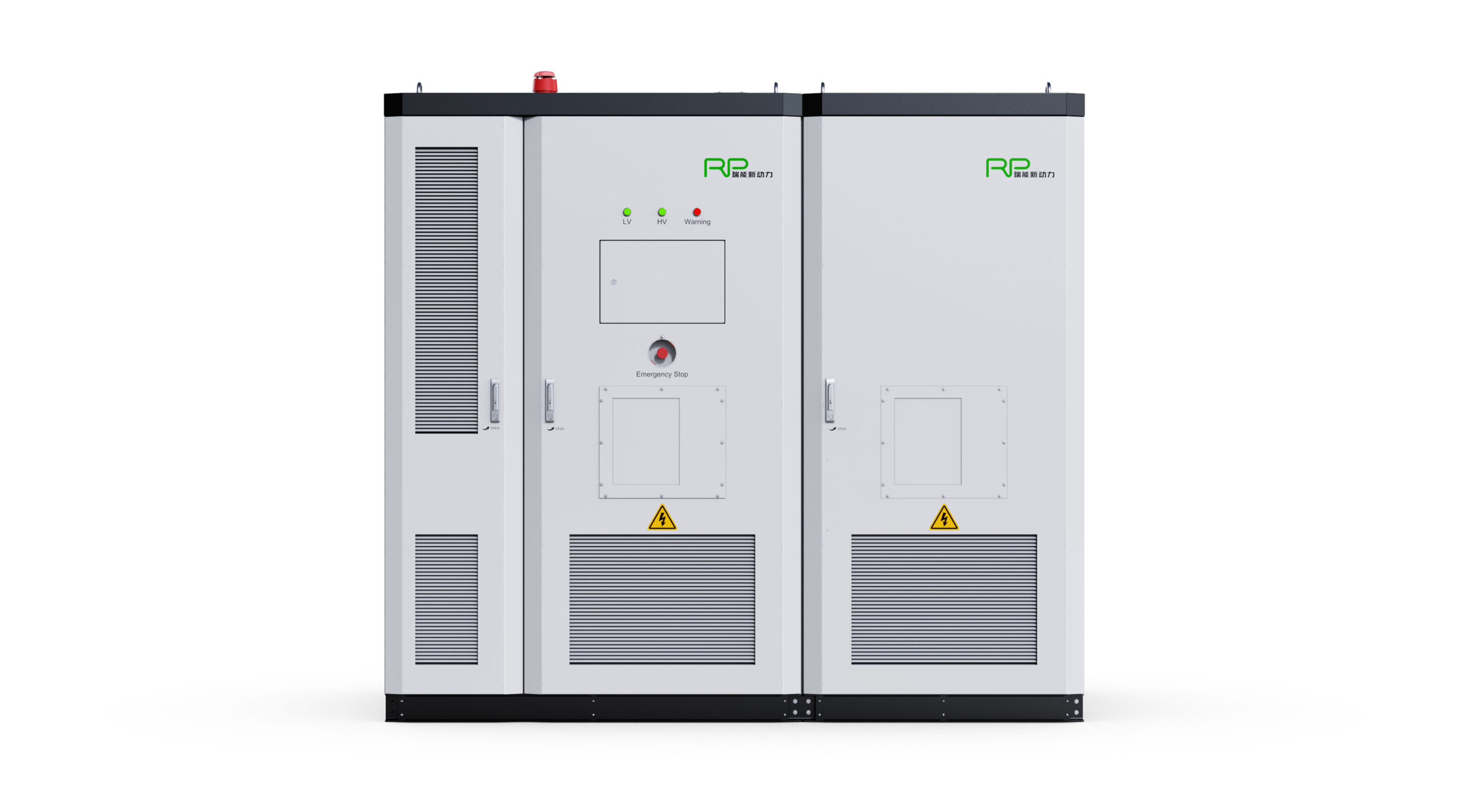

210KW/465Kwh Distriduted Energy Storage Cabinet(Euro)

210KW/465Kwh Distriduted Energy Storage Cabinet(Euro)

  • Flexible deployment: modular structure, flexible cabinet combination; IP54 protection level, suitable for various outdoor scenarios;
  • lMultiple control strategies: peak shaving and valley filling, dynamic capacity increase, demand control, off-grid mode;
  • lEfficient thermal management: Using a high-efficiency liquid cooling control system, the temperature difference is kept within 3°C;
  • lSafe and reliable: high and low temperature protection, over and under voltage protection, short circuit protection, thermal runaway alarm and fire protection, anti-reverseflow, anti-overload, anti-island and other multiple protections;
  • lComplete certifications: IEC62477; IEC62619; IEC61000; EN 50549; UN38.3.
Category: Product ID: 58467

Description

1、Product Feature

  • Flexible deployment: modular structure, flexible cabinet combination; IP54 protection level, suitable for various outdoor scenarios;
  • lMultiple control strategies: peak shaving and valley filling, dynamic capacity increase, demand control, off-grid mode;
  • lEfficient thermal management: Using a high-efficiency liquid cooling control system, the temperature difference is kept within 3°C;
  • lSafe and reliable: high and low temperature protection, over and under voltage protection, short circuit protection, thermal runaway alarm and fire protection, anti-reverseflow, anti-overload, anti-island and other multiple protections;
  • lComplete certifications: IEC62477; IEC62619; IEC61000; EN 50549; UN38.3.
  •

2、Paramenter

Models RPC3-S105KA232K-3F50EU-rp1 RPC3-S210KA465K-3F50EU-rp1
DC Parameters
Full Configuration Capacity (kWh) 232 465
Cell Parameters LFP-3.2V-280Ah-896Wh
Module Parameters LFP-166.4V-280Ah-46.59kWh
Rated Voltage (V) 832
Maximum DC Current (A) 140
DC Voltage Range (V) 650~949
Charge/Discharge Rate 0.45P
Cycle Life (Cycles) 7000，25℃，90%DOD,≥70%EOL
AC Parameters
Rated Power 105KW 210KW
Rated Output Voltage 400V
Rated Output Current 151.5A 303A
AC Wiring Method Three-phase four-wire
Frequency 50HZ/60HZ
Total Harmonic Distortion (THD) of Voltage ＜ 3%( linear load )
Continuous Overload Capacity 1.1 times rated power
Power Factor Range -1~+1
Permissible Grid Voltage -15%~+15%
Parameters
Communication Interface RS-485/CAN/LAN/TCP IP
Temperature Control Solution Liquid cooling Pack + air cooling PCS
Fire Protection Solution Smoke/Temperature Detection+Aerosol
Altitude (m) 3000（大于2000Derate）
Permissible Ambient Temperature (℃) -30~+55
Permissible Relative Humidity (%Rh) 0~95
Protection Rating IP54
Corrosion Protection Rating C4
Dimensions (WDH) (mm) 1500*1400*2255 2514*1400*2255
Full Configuration Weight (tonnes) about 2.5tons about 4.5tons
Product Certification Germany grid connection: VDE-AR-N4105-2018UK grid connection: G99South Africa grid connection: NRS097European grid connection: EN 50549-1-2019Safety regulations: IEC62477; IEC62619; IEC60730; IEC63056;EMC: 61000-6-2/4Transportation: UN38.3, MSDS, shipping certificate, hazardous characteristics classificationWaterproof and dustproof: IEC60529
