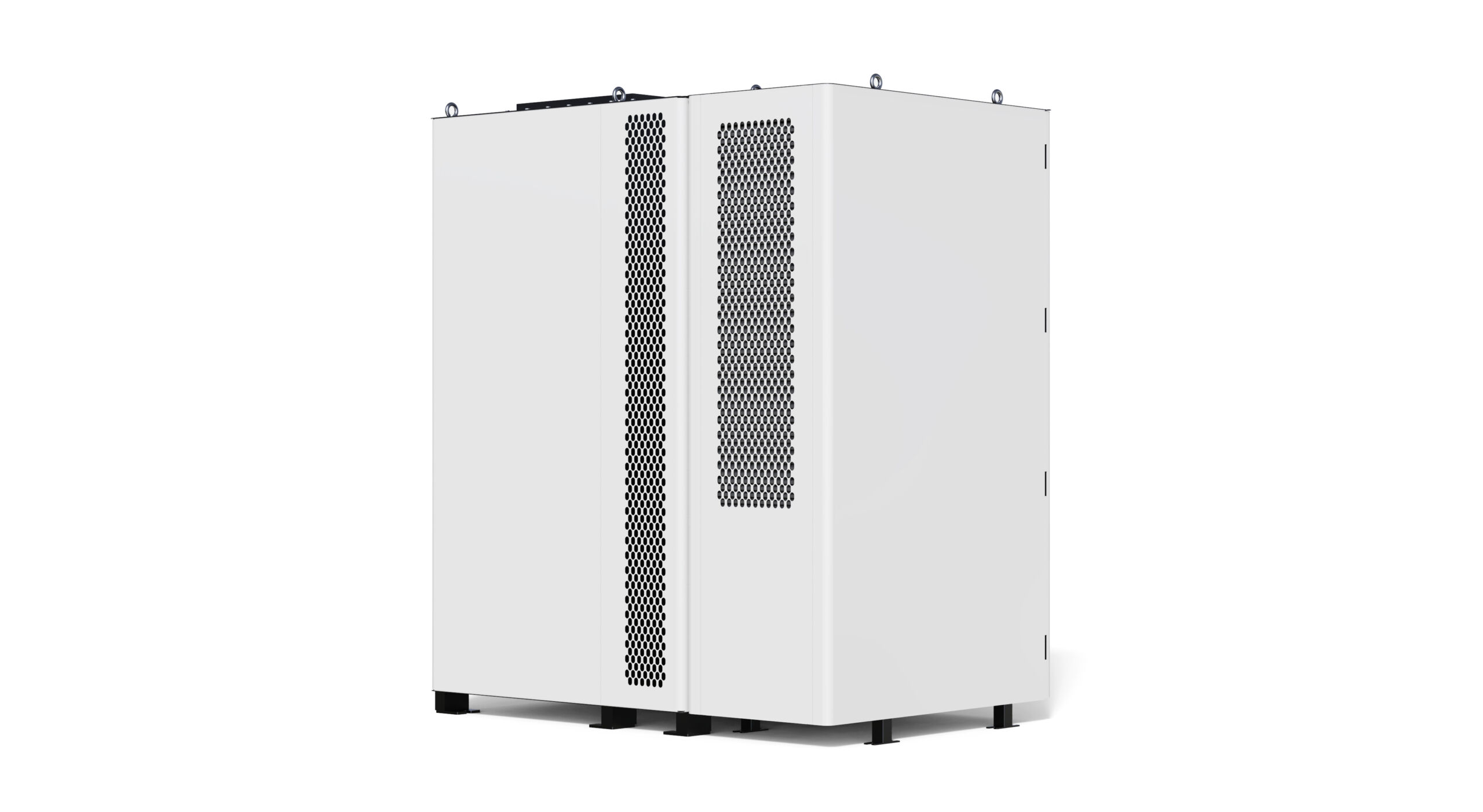

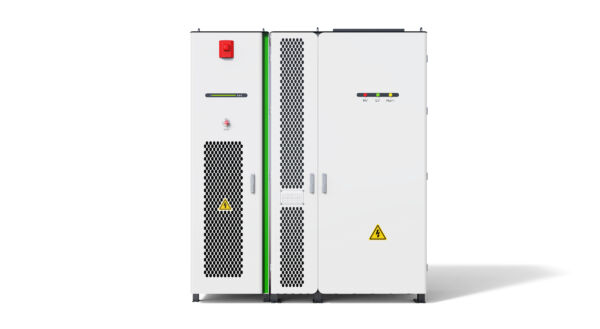

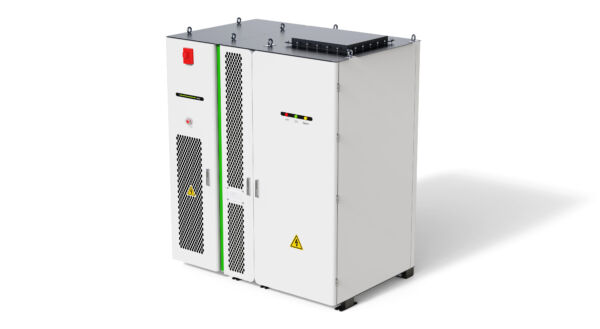

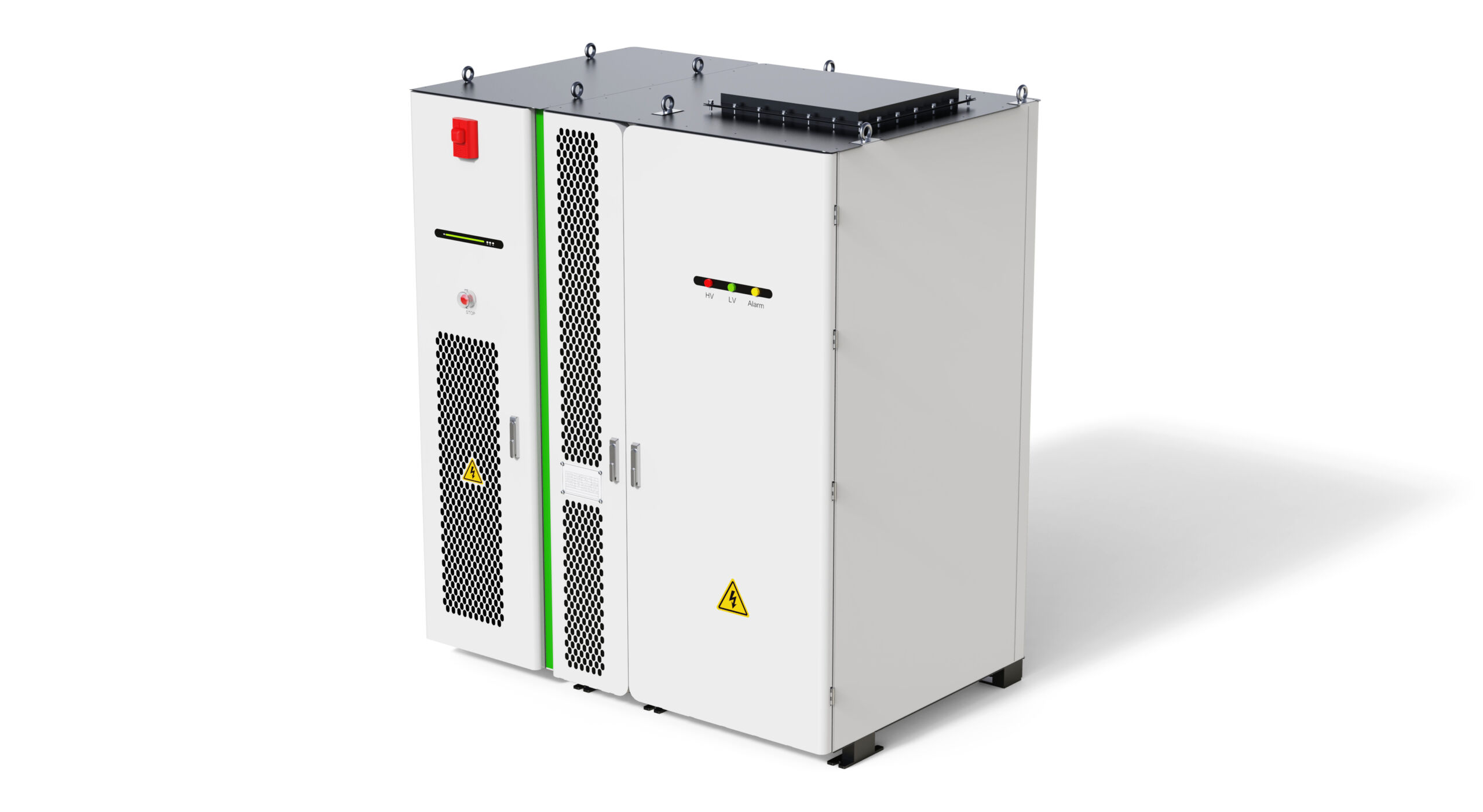

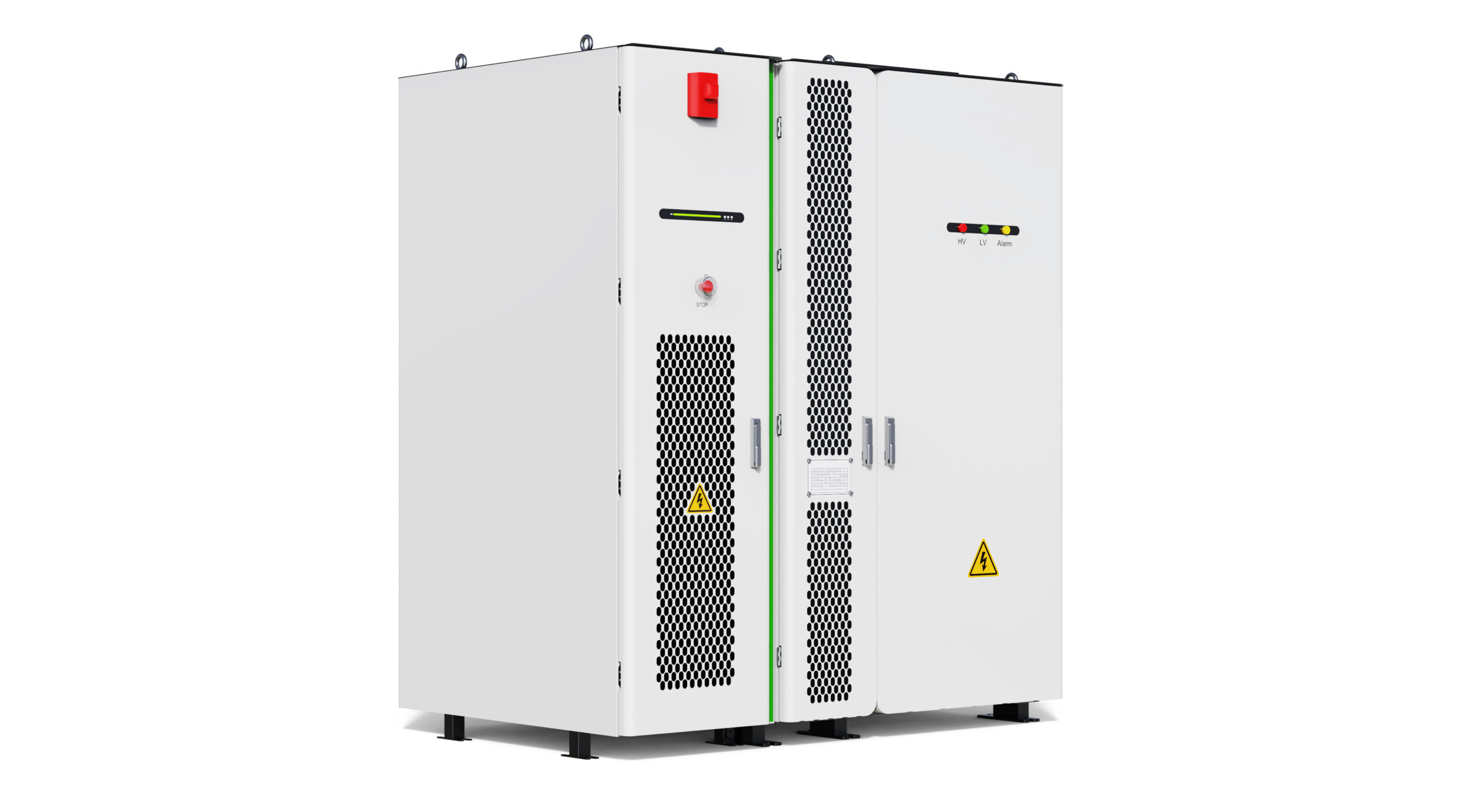

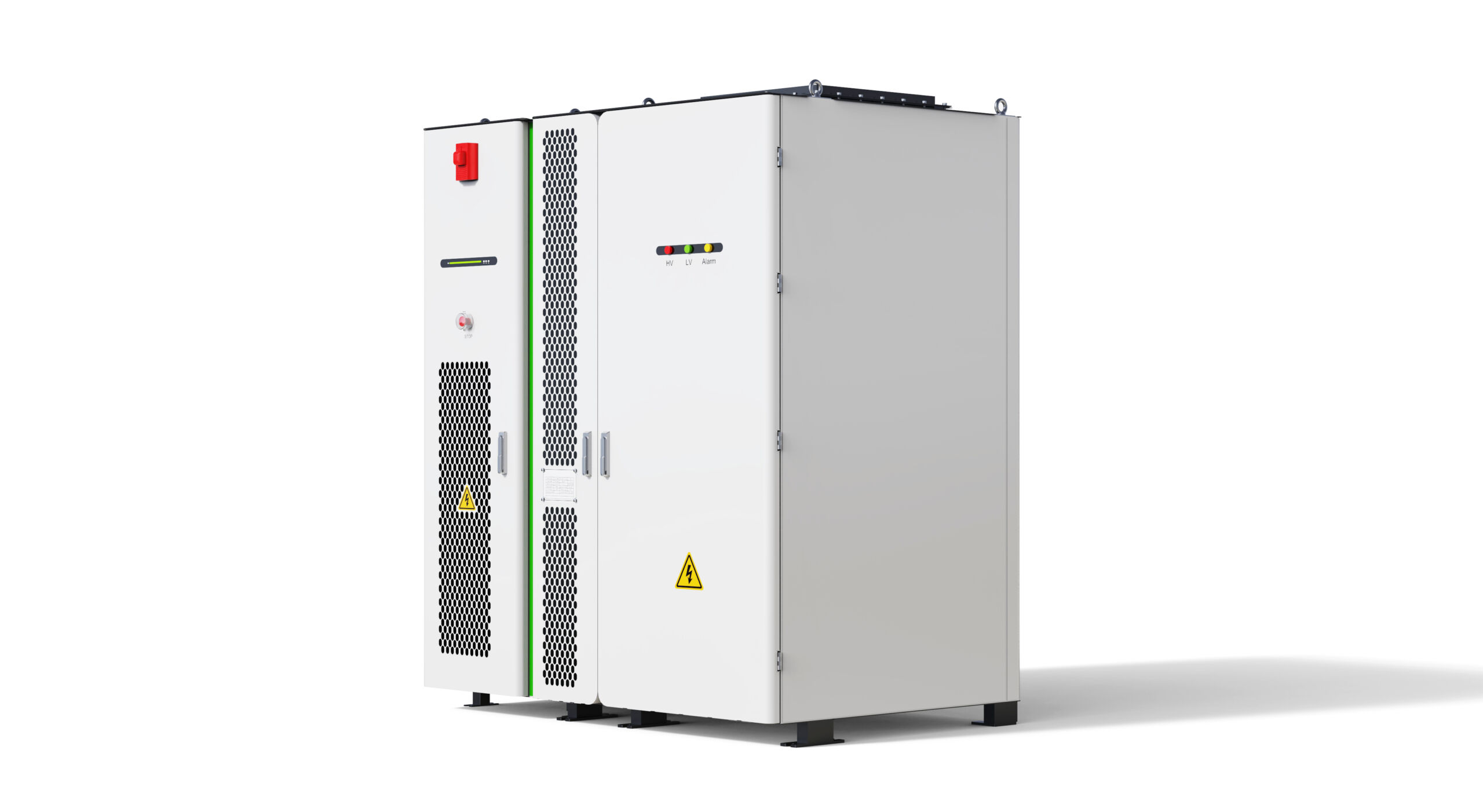

125Kw/326Kwh Distributed Energy Storage Cabinet(US)

  • Battery intelligent thermostat coupled with cloud technology, support for remote monitoring; system hierarchical linkage protection, comprehensive protection system security;
  • Modular design, integrated transportation, simple and convenient;
  • Battery 90% DOD depth discharge, standard working condition cycle life more than 5500 times;
  • Supports parallel use of multiple machines; built-in EMS, a variety of operating modes to choose from;
  • C4 Anti-corrosion grade design, to meet a variety of application environments;
  • Intelligent battery thermostat control, high protection structure design, meet the outdoor use.
Category: Product ID: 58098

Description

1、Product Feature

  • Flexible Deployment:Modular design allows flexible cabinet expansion; IP54 protection rating ensures suitability for various outdoor applications.
  • Versatile Control Strategies:Supports peak shaving and valley filling, dynamic capacity expansion, demand control, and off-grid operation modes.
  • Efficient Thermal Management:High-efficiency liquid cooling system keeps temperature variance within 2°C.
  • Safety and Reliability:Equipped with multiple protection mechanisms, including high/low-temperature protection, over/under-voltage protection, short circuit protection, thermal runaway alarms, fire prevention, anti-backflow, overload, and anti-islanding protection.
  • Comprehensive Certifications:Compliant with international standards such as UL1973, UL9540A, UL9540, and UL1741.

2、Paramenter

System Paramenter
Model RPC3-S125KA232K-3G60US-rp1 RPC3-S125KA279K-3G60US-rp1 RPC3-S125KA326K-3G60US-rp1
Capacity(kWh) 232 279 326
Rated AC Power(kW) 125
Maximum Charge/Discharge Rate 0.53P 0.44P 0.38P
Life Cycle(times) 7000,70%EOL@25℃,90%DOD
Communication Port RS-485/CAN/LAN/TCP IP
Temperature Control System Liquid Cooled
Fire Protection Solution Smoke/Temperature Detection + Aerosol Suppression
Maximum AC Current (A) 150
Power Factor 0.99
Altitude (m) 3000,>2000 Frequency Derating
Permissible Ambient Temperature (°C) -20~+45
Permissible Relative Humidity (%Rh) 0~95
Protection Grade (IP) IP54
Corrosion Resistance Level C4
Dimensions (WDH) (mm) 1950*1300*2300
Fully Loaded Weight (tons) 3 3.33 3.66
Certifications UL9540,UL9540A,UL1973,UL1741,UN38.3,CEC
BESS Parameter
Rated Voltage (V) 832V 998.4 1164.8V
Voltage Range (V) 728~936 873.6~1123.2 1019.2~1310.4
Rated Output Current (A) 140
Rated Capacity (kWh) 232 279 326
Cell Rated Capacity 280Ah
PCS Parameter
DC Voltage Range (V) 720~1300
Maximum DC Current (A) 195
Rated AC Voltage (V) 480
Wiring Method 3P3W
Permissible AC Voltage Range (V) -12%~+10%
Rated Voltage Frequency (Hz) 60
